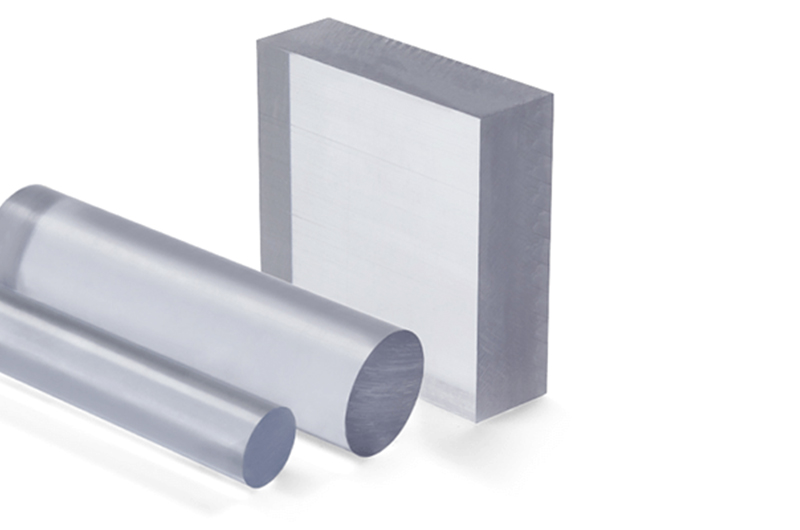

ZOVGOV® PC Sheet Rod

Polycarbonate (PC) has high rigidity and high impact strength. In addition, it also has high glass transition temperature and temperature resistance (about+130 ° C). The operating temperature is between - 60 ° C and about+120 ° C.
Characteristic:
>>Very high impact strength
>>High mechanical strength
>>High dimensional stability
>>High temperature resistance
>>Good insulation
>>Strong radiation resistance
>>Medium chemical resistance
>>Notch sensitive, easy to form stress cracking
>>Easy to hydrolyze
Application:
Transparent parts with high impact strength and bending strength are required.

Product Details

	ROUND RODS Length:1 \| 3 m
φ（mm）	Tolerances mm(min-max)	MOLAN PC(kg/m)
10	+ 0,1 + 0,8	0,100
12	+ 0,2 + 0,9	0,148
15	+ 0,2 + 0,9	0,224
16	+ 0,2 + 0,9	0,258
20	+ 0,2 + 0,9	0,398
25	+ 0,2 + 1,2	0,622
30	+ 0,2 + 1,2	0,888
36	+ 0,2 + 1,6	1,283
40	+ 0,2 + 1,6	1,576
50	+ 0,3 + 2,0	2,466
60	+ 0,3 + 2,5	3,550
70	+ 0,3 + 2,5	4,850
80	+ 0,4 + 3,0	6,290
90	+ 0,6 + 3,8	7,970
100	+ 0,6 + 3,8	9,840
120	+ 1,2 + 7,4	14,596
140	+ 1,2 + 7,4	19,310
150	+ 1,2 + 7,4	22,180
180	+ 1,2 + 7,4	32,010
200	+ 1,3 + 8,5	39,570

	SHEETS Length：1m
mm	Tolerances mm min. max	MOLAN PC Width : 620mm kg/m
10	+ 0,2 + 1,1	8,200
15	+ 0,3 + 1,5	12,550
20	+ 0,3 + 1,5	16,400
25	+ 0,3 + 1,5	20,250
30	+ 0,5 + 2,5	24,750
40	+ 0,5 + 2,5	32,500
50	+ 0,5 + 2,5	40,250
